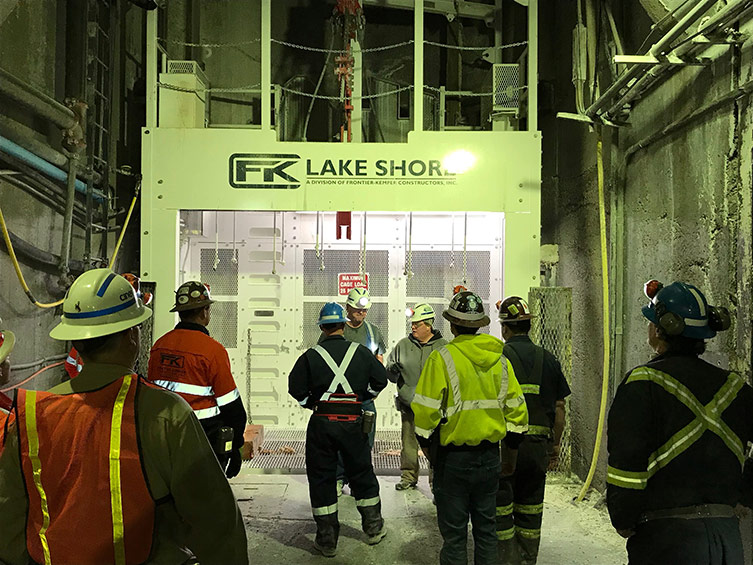

FKC-Lake Shore 25-man Service Cage underground at a Wyoming trona mine.

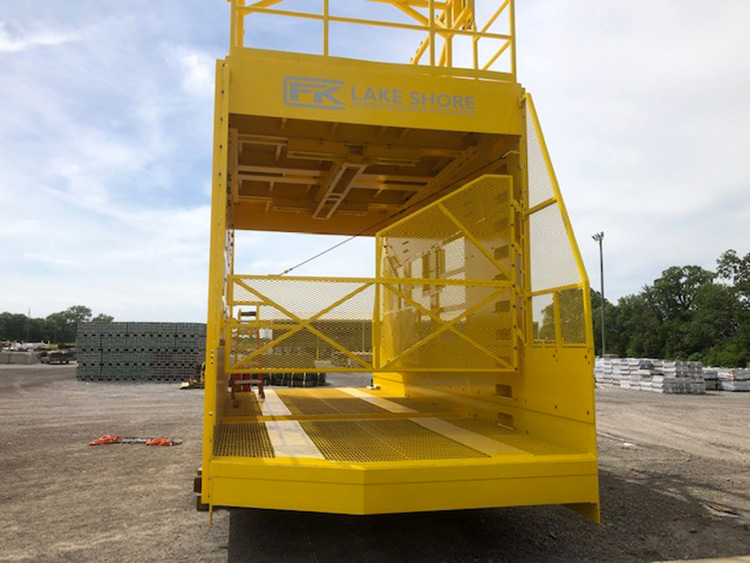

FKC-Lake Shore 64-man Service Cage

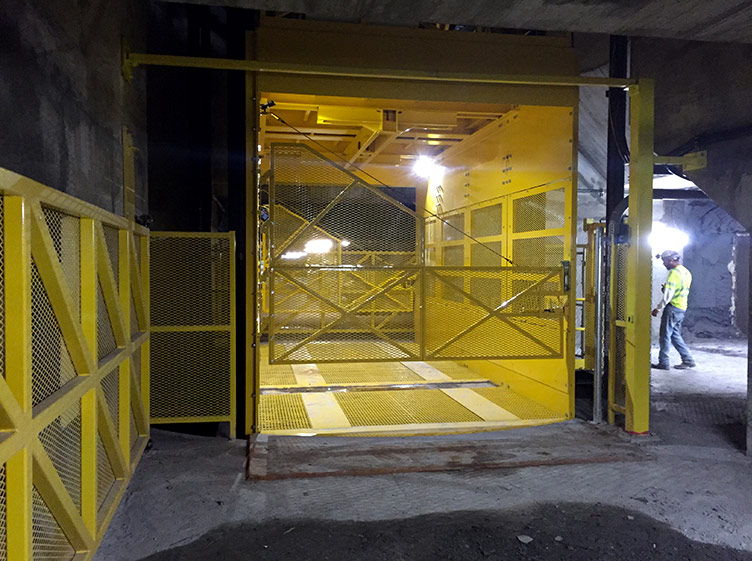

64-man Service cage underground at a Kentucky coal mine.

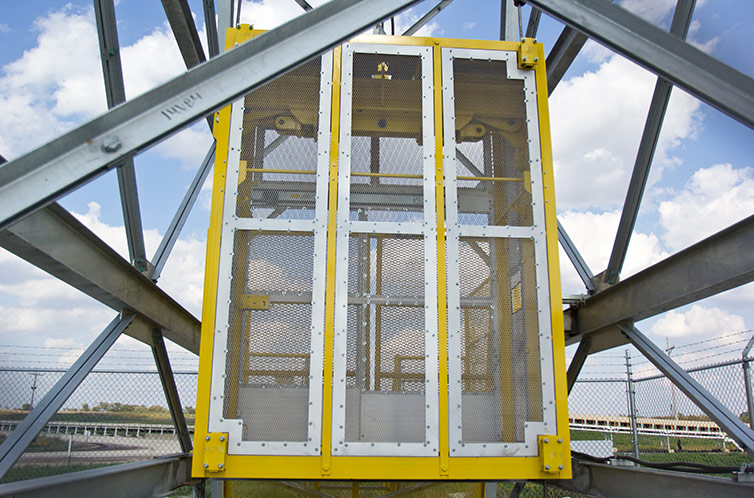

FKC-Lake Shore 12-man Emergency Escape Cage

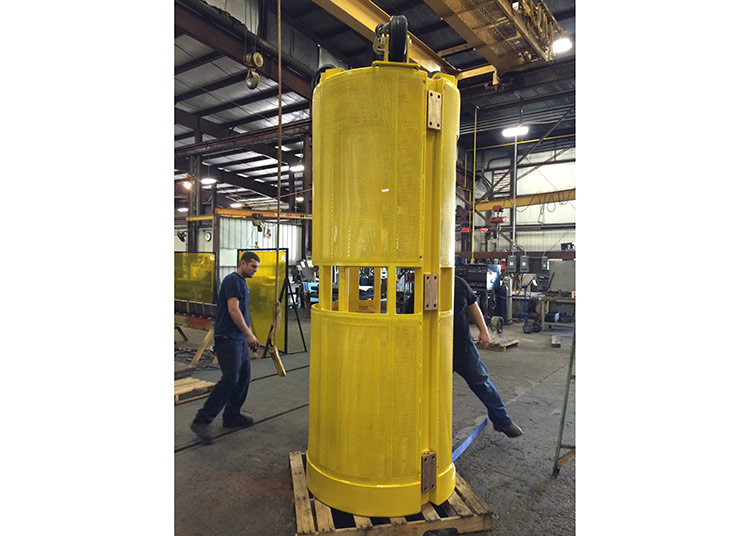

FKC-Lake Shore 2-man Escape Capsule

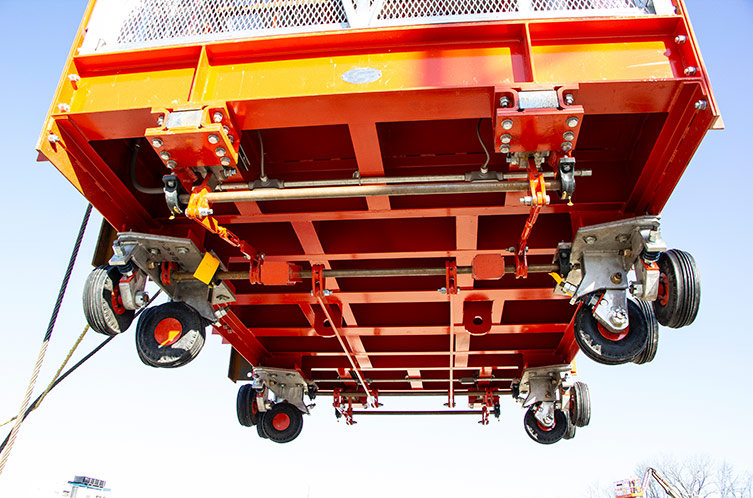

Chairing System installed on a 9.25-ton Service Cage.

Cages

FKC-Lake Shore offers custom-designed Cages to transport personnel and material in vertical shafts. Cages can be built from steel, aluminum, or stainless steel to meet the needs of the underground environment. Broken rope safeties are available for steel guides, wooden guides, and rope guides.

TECHNICAL DATA:

Type	Single, Double, or Triple Deck
Material	Steel; Aluminum; Stainless Steel
Gates	Swing; Bi-Parting; Roll-Up; Guillotine
Guides	Steel; Wood; Rope
Safety Mechanism	Dogs/Catches (Steel, Wood, Rope)
Design Criteria	2.5ft²/person; 250 lbs/ft²
Guide Rollers	FKC-Lake Shore 3-Wheel Guide System (Poly, Pneumatic, Foam-Filled)
Optional	Mechanical, Hydraulic, & Electric Chairing Systems; Wired & Wireless Communications; Heaters; Overhead (in-cage) Hoists for Equipment; Inspection Bonnets
