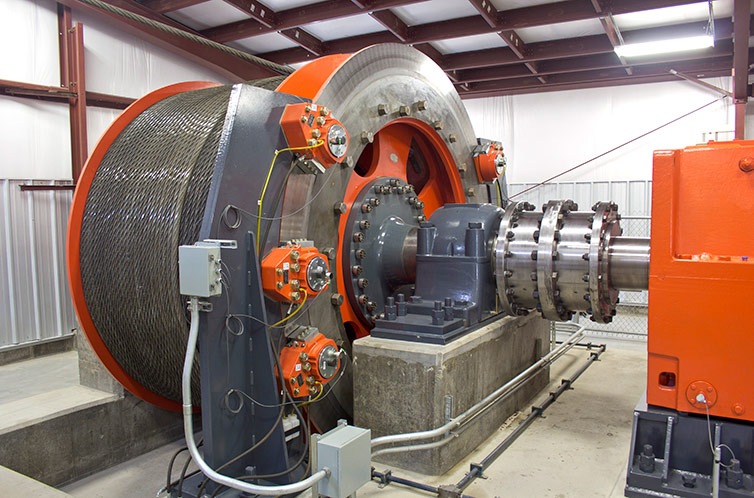

125-ton Slope Hoisting System designed, built, and installed by FKC-Lake Shore.

gibson county coal mine 80-ton slope hoist

80-ton Slope Hoisting System designed, built, and installed by FKC-Lake Shore.

mingo logan coal mine slope wire rope deflection sheave wheel

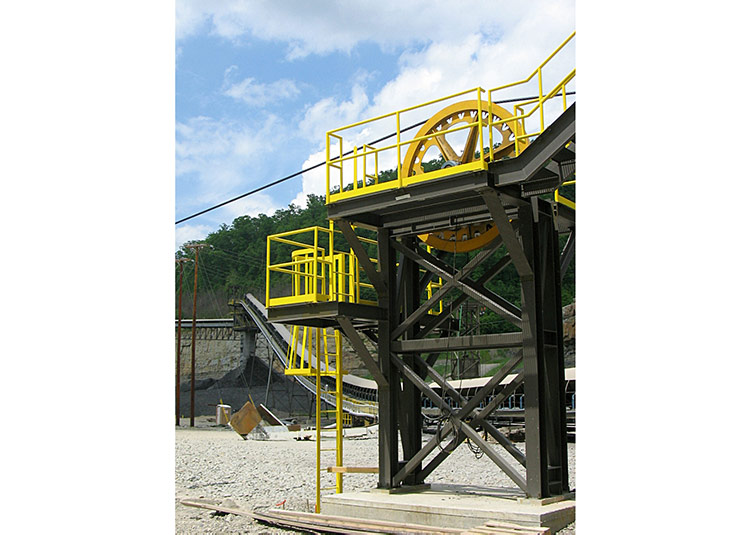

7-ft. Ø Deflection Sheave installed with an 85-ton Slope Hoisting System in West Virginia.

robinson run coal mine man trip barney car

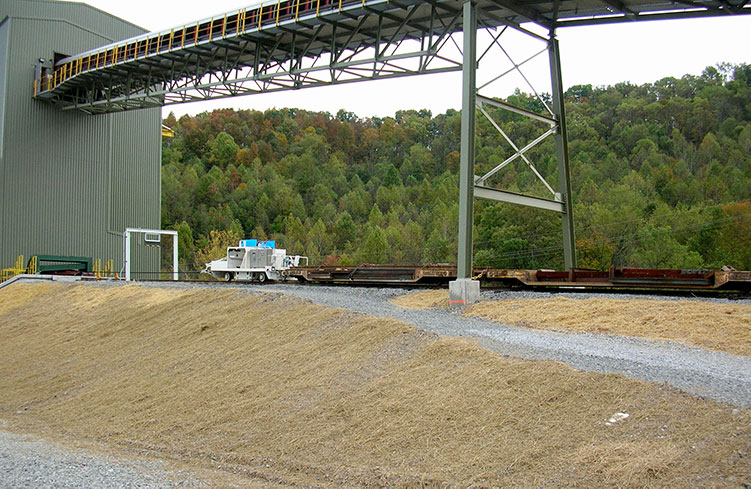

FKC-Lake Shore 4-man Barney Car in use at a West Virgina coal mine.

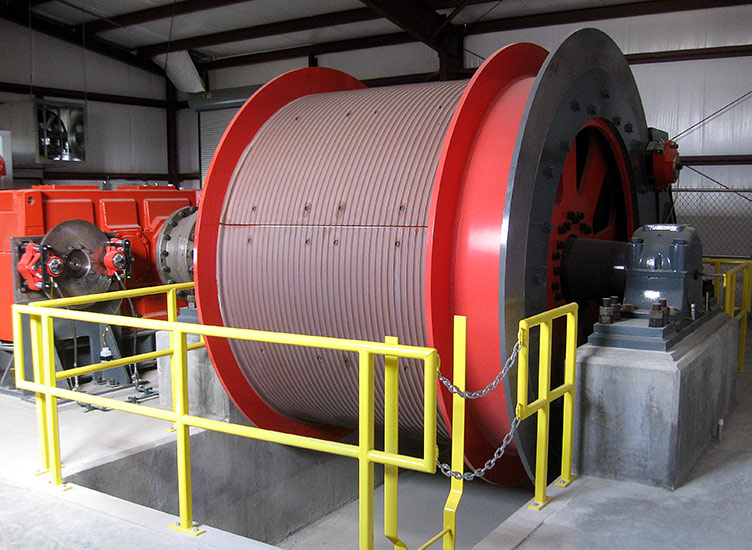

125-ton Slope Hoist installed at an Illinois coal mine.

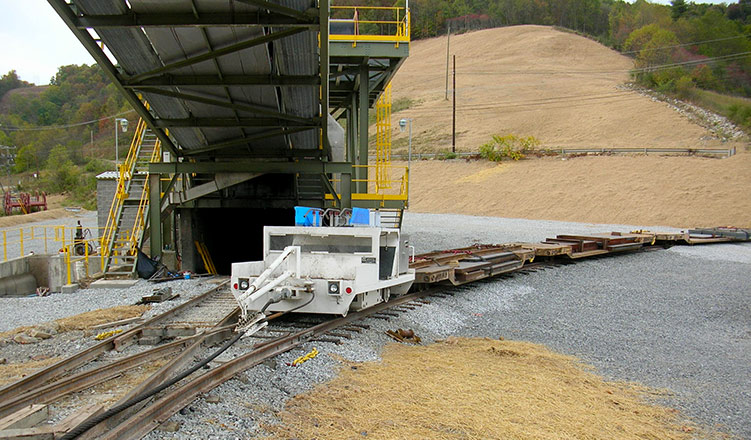

Barney Car designed, built, and installed by FKC-Lake Shore.

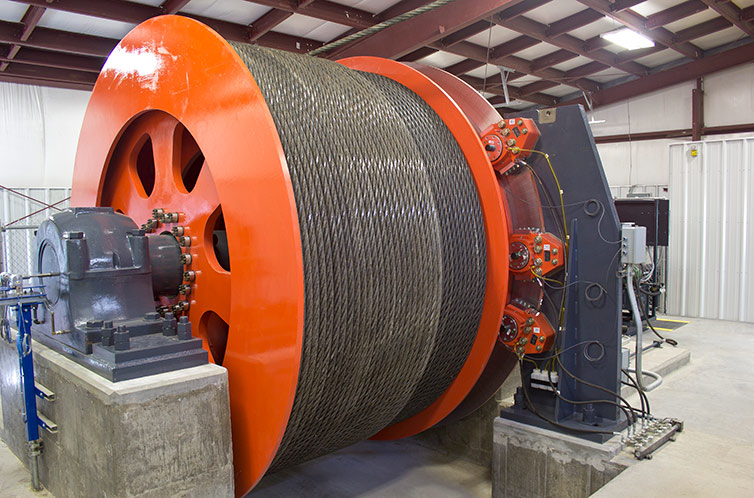

125-ton Slope Hoisting System designed, built, and installed by FKC-Lake Shore.

Decline/Slope Hoisting Systems

To transport personnel and supplies up and down mine slopes, FKC-Lake Shore offers standard and custom-designed Slope Hoist packages. Our standard hoists are rated for 80T, 100T, and 125T on a 16° slope.

TECHNICAL DATA:

Hoist Arrangement	In-Line; Off-Set with Turning Sheave Assembly; Unitized Base
Drum Type	Drum Winder
Drum Size	Up to 12-ft. Dia.
Depth	Up to 6,000 ft. at 16°
Rope Attachment(s)	Open Spelter Socket
Conveyance	FKC-Lake Shore Brakeman Car; Mine Supply Car
Brake System	Spring-Applied Caliper Brakes/ Hydraulic Release
Payload	45,000-75,000 lbs. Line Pull; (80T-125T at 16°
Electrical Controls	AC & DC Automatic Hoist Controls; Digital Lily (HSS)
