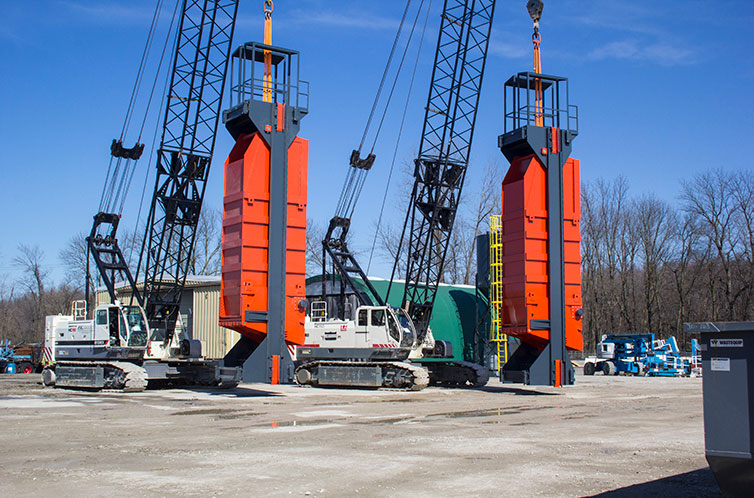

22.6-ton, Jeto Bottom-Dump Skips manufactured for a Wyoming trona mine

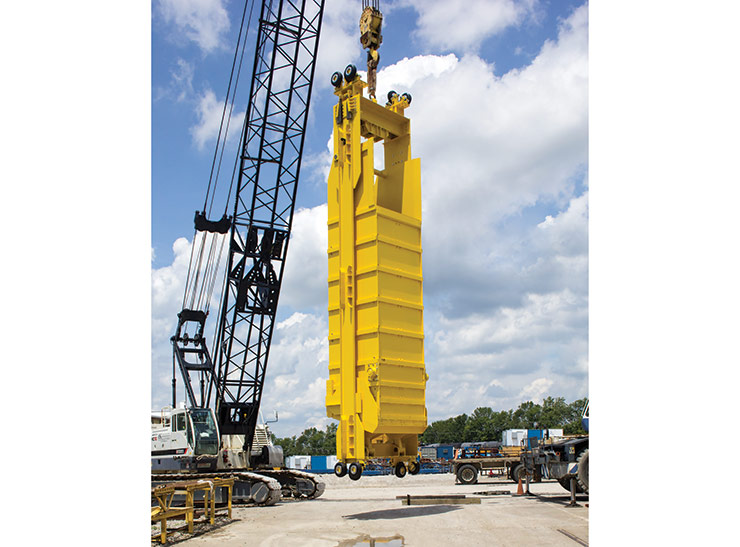

17 ton yellow jeto gold silver mine skip

17-ton, Jeto Bottom-Dump Skip manufactured for a gold/silver mine in Zacatecas, Mexico

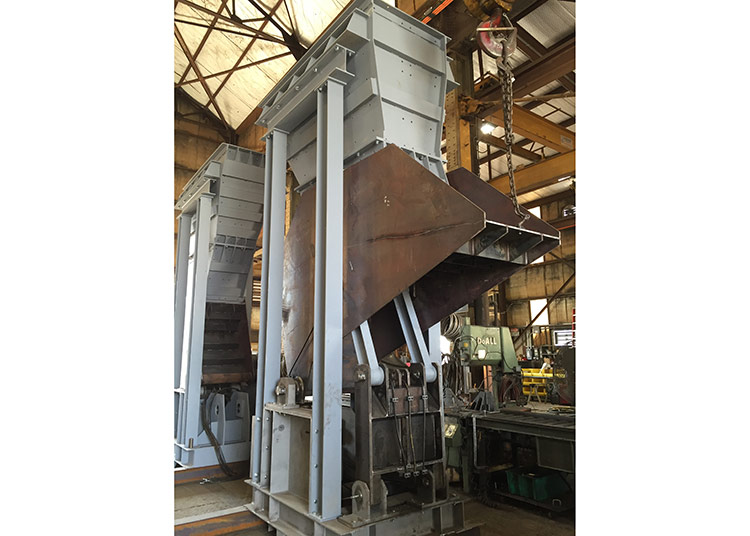

Dual Skip Loaders for a Peru gold mine in fabrication at our Evansville, IN facility.

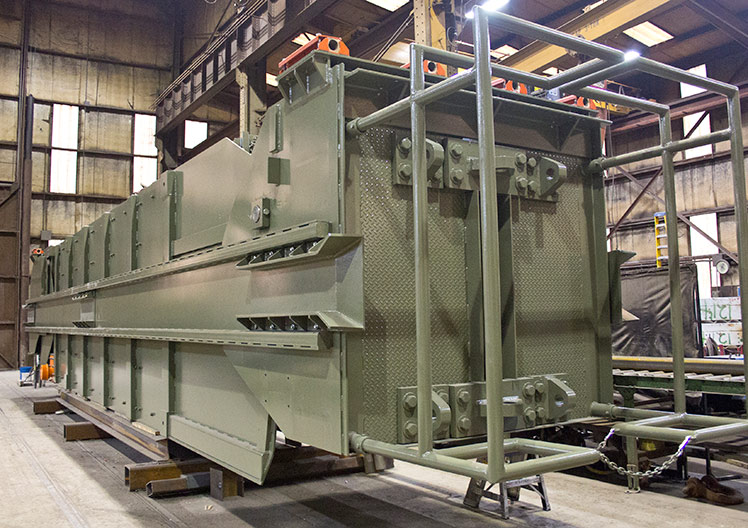

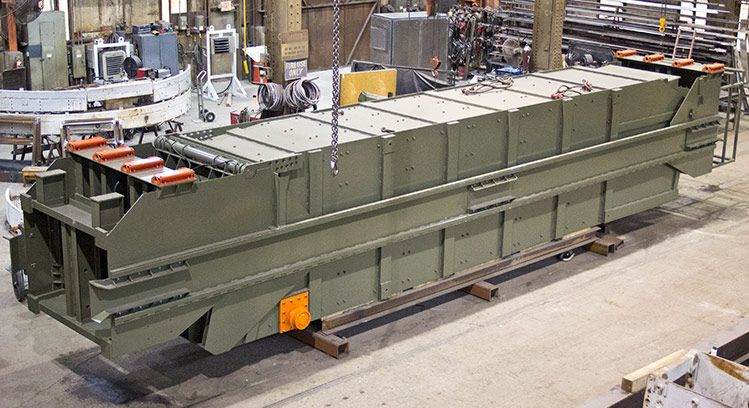

29.7-ton, Jeto Bottom-Dump Skip in fabrication at our Evansville, IN facility—for West Virginia coal mine

Skips

The Lake Shore patented "Jeto" Bottom-Dump Skip, designed for faster, cleaner dumping, is in use throughout the world in all types of mines; metallic and non-metallic.

In operation, the loaded Skip is hoisted to the dumping station, and dump rollers engage the dump scrolls. The rollers unlock the body from the bail frame and swing the body outward. Toggle links attached to the skip door and bail frame open the Skip door and material is discharged.

This skip is designed to achieve proper balance while providing rugged strength, long wear life, and minimum dead weight. With the "Jeto," the center-of-gravity puts all weight directly on the hoist rope whether loaded, partially loaded, or empty.

TECHNICAL DATA:

Type	Jeto, Bottom-Dump, Kimberly, Arc Gate
Capacity	1T-60T
Material	Steel; Aluminum
Liners	Steel, Poly, Stainless, AR, Tri-Blaze®, Astralloy®
Optional	Safety Dogs/Catches; Platforms & Cages for Man Riding; Inspection Bonnets; Dump Scrolls; Loading Pockets

Skip Loading Stations

FKC-Lake Shore Skip Loading Stations are designed with a rotating door—providing several advantages over a fixed chute. The loader door does not hang in the shaft, and the door extends into the skip avoiding spillage. We offer volumetric and load cell features along with automatic loading through our controls package.

TECHNICAL DATA:

Type	FKC-Lake Shore Single or Double Flask Design
Capacity	1T-60T
Material	Steel
Liners	Steel, Poly, Stainless, AR, Tri-Blaze®, Astralloy®
Optional	Volumetric and/or Load Cells, Pneumatic or Hydraulic Controls
