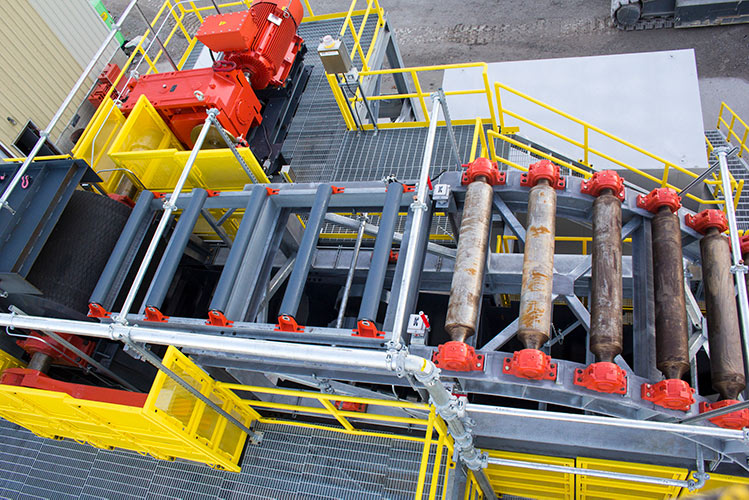

Fresnillo Vertical Conveyor Belt Upper Structure

Upper structure of FKC-Lake Shore's record-breaking, 400m-lift Vertical Conveyor System.

Vertical Conveyor Upper Structure

Upper structure of FKC-Lake Shore's record-breaking, 400m-lift Vertical Conveyor System.

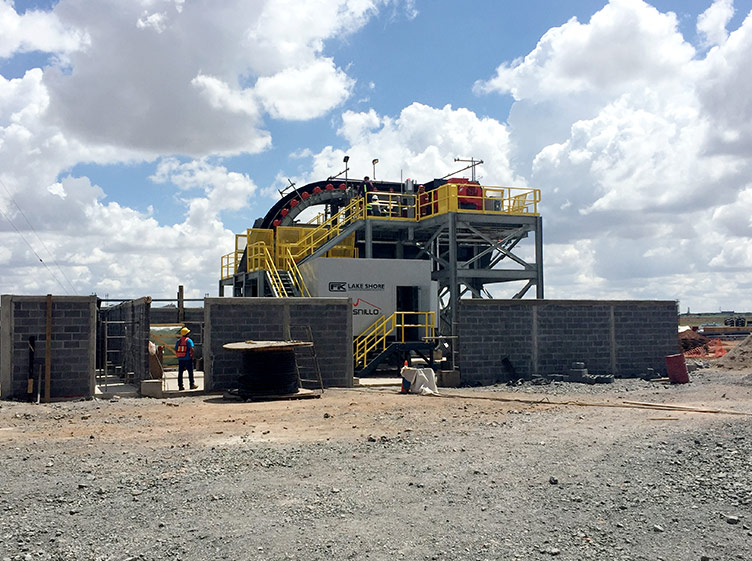

Vertical Conveyor System installation

Installation of FKC-Lake Shore's world record, 400m-lift Vertical Conveyor System in Zacatecas, Mexico.

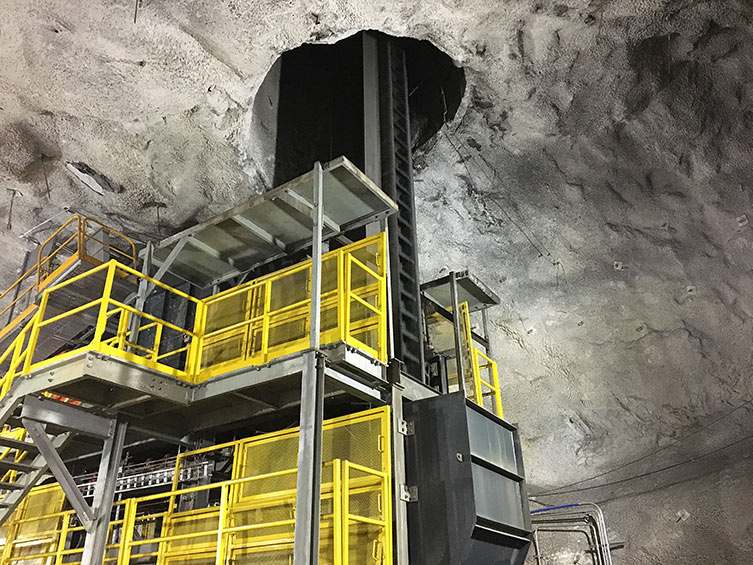

underground lower structure of mine vertical conveyor system

The lower structure of FKC-Lake Shore's record-breaking, 400m-lift Vertical Conveyor System.

Previous Next
  1. upper structure thumb 1
  2. upper structure thumb 2
  3. conveyor install thumb 3
  4. lower structure thumb 4

Vertical Conveyors

FKC-Lake Shore offers custom-designed Corrugated Sidewall and Pocketlift® Vertical Conveyor solutions to transport mined materials from underground to the surface. We can accommodate lifts from 30m-850m. Tonnage rates depend upon depth and material density.


TECHNICAL DATA:
Type Corrugated Sidewall & Pocketlift®
Max Lift 2,800 ft. (850m)
Max Tonnage Up to 6,000 TPH (varies by depth & density)
Belt Construction Fabric & Steel Cord Base Belts
Braking External Backstops & Spring-Applied Caliper Brakes/Hydraulic Release
Controls Soft-Start or VFD
