Service Shaft, Vent Shaft, & Slope Portal
Longview Mine Turn-Key Projects
Photo Credit: Century Mining, LLC

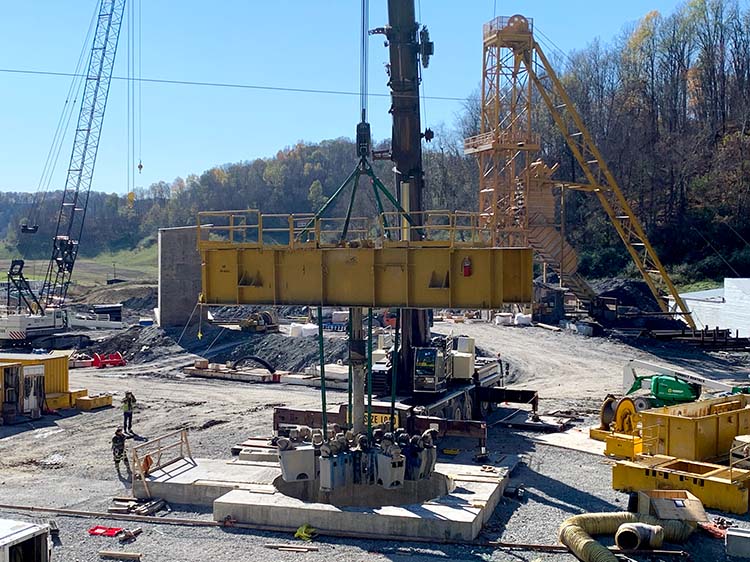

Raise bore hole-thru of the 18-ft. OD, 16-ft. ID Ventilation Shaft.
Photo Credit: Century Mining, LLC

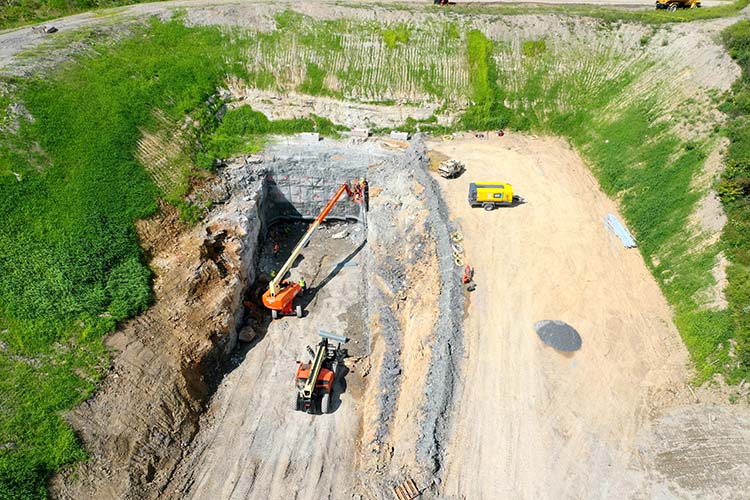

Open cut excavation at the beginning of the development of the 15° Slope.
Photo Credit: Century Mining, LLC
24-ft. diameter Service Shaft under construction
PROJECT DETAILS:
MARKET: Coal
OWNER: Century Mining, LLC
CONTRACTOR: Frontier-Kemper Constructors, Inc.
START DATE: May 2019
END DATE: May 2022
- Service Shaft
- 24-ft. Diameter Shaft—Conventionally Excavated
- Shaft Depth: 880 ft.
- Sump Depth: 15 ft.
- 4-Way Concrete Station
- Slope Portal
- 15° Slope with Belt Entry Station
- 16 ft. wide x 17 ft. high Horseshoe Shape Cross-Section
- 2,670 ft. of Mine Development
- 3,640 ft. of Slope Development
- Divider Deck & Belt Structure
- Ventilation Shaft
- 16-ft. Diameter Shaft—Raise-Bored
- Shaft Depth: 880 ft.
